For Complete Product Description of each model above and to view the Technical Information,����������� Please click on the following PDF Files underlined in blue below this text.Model 4A Series Model 7J Series Adapter Kit �� ����� PricingAPPLICATIONS - Manually operated, light but sturdy pumps providing pressures up to 12,000 PSIG with water or oil. Low cost pressure source for testing piping, boilers, tanks, fire extinguishers, pressure tanks, and laboratory equipment.
RELIABILITY - Precision engineered of long-life materials. All wet parts are bronze, brass, or stainless steel. The body and fittings are machined bronze or brass. The piston is stainless steel. Spring-loaded conical pop-pet valves provide snappy trouble-free action. Replaceable Buna N O-ring in poppet assures positive seal. Piston packing is Buna N O-ring with backup, (Special seals available.) RUGGED PORTABILITY: 4A - Weighing only 7 pounds on an aluminum channel base, overall dimensions are 20 long by 3 wide by 4 inches high. 7J -� Weighing only 27 pounds on an aluminum channel base and in a shipping carton. Shipping dimensions are 24.75" x 4.5" x 5".
MECHANICAL ADVANTAGE FOR MANUAL PUMP LEVER4A - Heat treated aluminum lever has a shaft and roller, acting through a cross slot m the piston head for a practically friction-less, tight action. The manual load is 60 pounds (for 1000 PSIG pump) or 65 pounds {for 3000 PSIG pump). 7J - The lever fulcrum may be mounted in either of two positions. One delivers higher pressure per 100 pounds lever load (max. leverage). The other delivers greater displacement (output) per lever stroke (std. leverage). (See tables for data.) In addition, a handle extension is provided to increase the advantage for higher pump pressures. STANDARD CONFIGURATION4A - Intake (suction) connection is female hose swivel with screened coupling washer for attachment of standard garden hose. Output (pressures connection is �� NPT female pipe at the end of the gauge block. Pressure gauge is supplied with unit. 2-1/2� dia., 15OO PSIG range for 4A-10.1 and 5000 PSIG range for 4A-30.1. 7J - Intake (suction) connection is a female hose swivel with screened coupling washer for attachment of standard garden hose. Output (pressure) connection is �� NPT female pipe at the end of the gauge block, Four foot flexible hose with �� NPT ends are included. Pressure gauges are optional. ACCESSORIESGauges: To � % accuracy, 4" and 6" dial size. Master, certified, and other dial sizes available. Fittings: Special valves, hose, and seals. Adapter Kit: Flexible hose 3/16" ID with 1/4" NPT ends x 4 feet, bleed valve, and assorted NPT fittings. Seals: Buna N o-rings standard for many fluids; other materials upon request. |
|
HYDRAULIC JACKING SYSTEMS������������������������ RENTAL�SALES�SERVICE |
|
HYDROSTATIC TEST PUMPS Richard Dudgeon, Inc. manufacturers hand operated hydrostatic test pumps rated from 1000 to 12000 PSIG. |
|

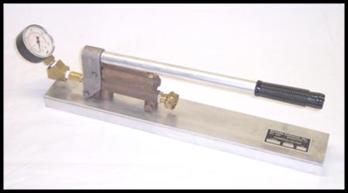

HYDROSTATIC TEST PUMP MODEL 4A |
|

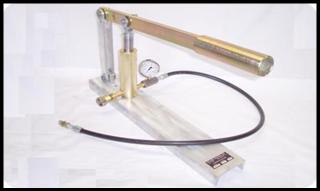

HYDROSTATIC TEST PUMP MODEL 7J |
